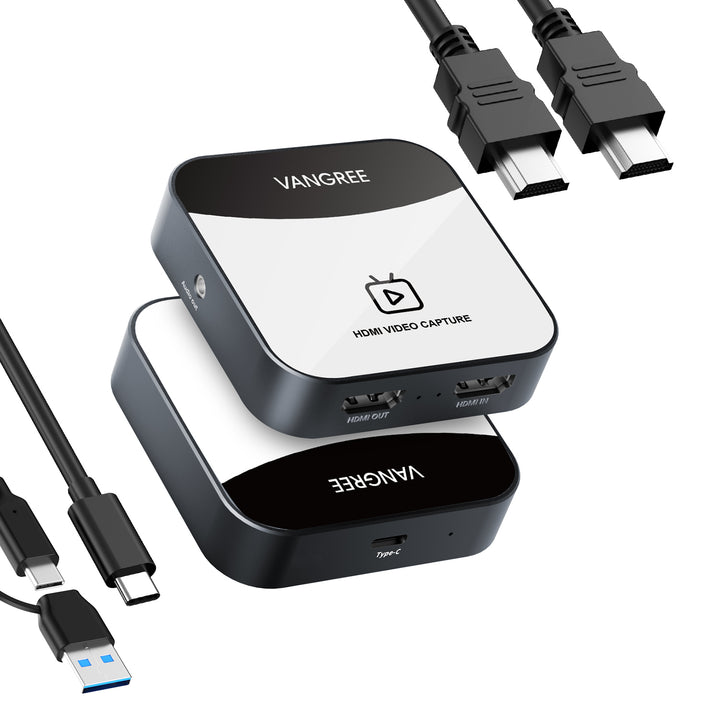

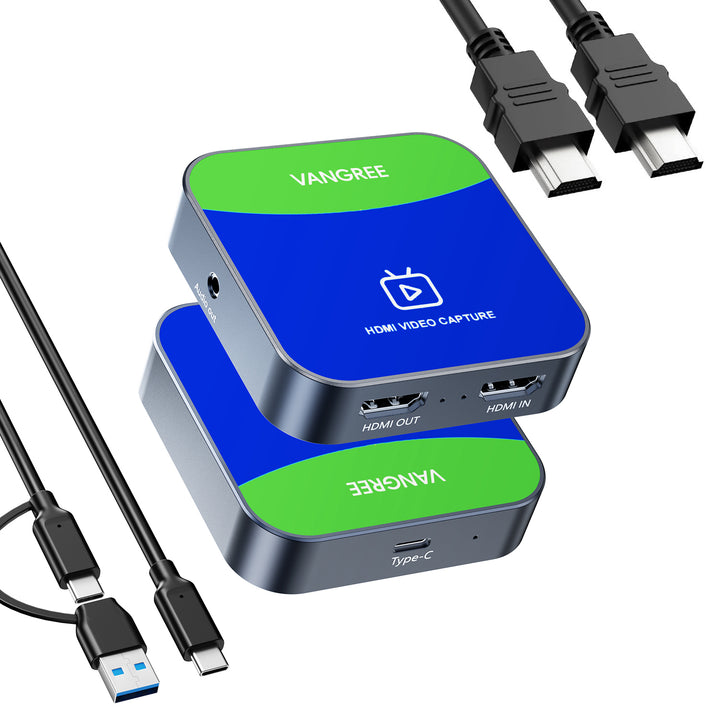

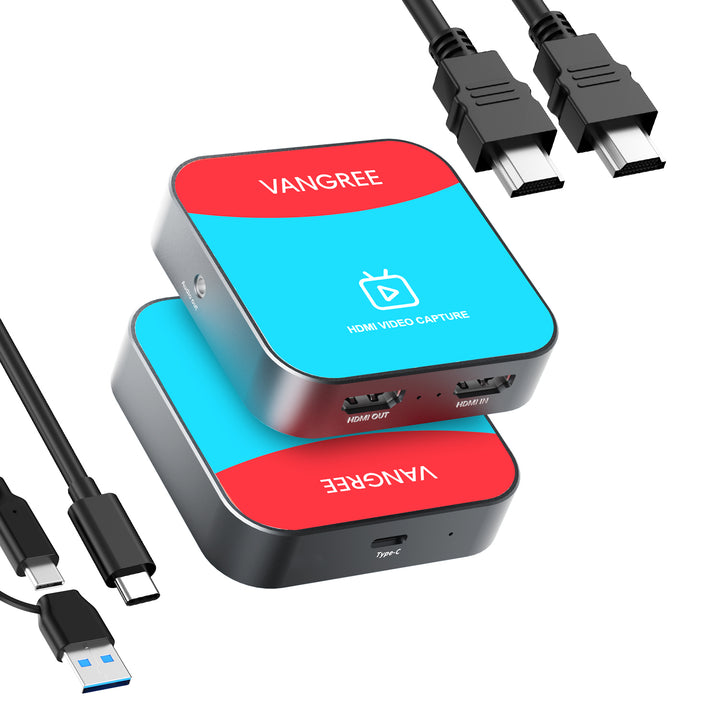

VANGREE 4K Video Capture Card (VC-003)
- VANGREE video capture card for Nintendo Switch has maximum HDMI input & pass-through resolution up to 4K@30Hz, and streams 1080p@60fps video signal through USB C 3.0 port. It outputs a clean and clear image quality without frame lag.
- Capture resolutions of capture card up to 1080p at 60fps for video source with hardware accelerated up-scaling/down-scaling. Supports up to 4K@30fps HDMI input, plug and play lets the device work instantly with stream media like OBS.
- The VANGREE VC-003 capture card is plug-and-play without power. No need to install any driver for the capture card switch. Compatible with all hdmi device such as PS4/5, Xbox one, Switch, PC etc. Live Streaming for Twitch, Youtube, OBS, Potplayer, VLC.
- Say goodbye to lag and interruptions during recording and video streaming, with the extreme ultra-low latency on the pass-through signal. When capturing video or playing games, having ultra-low latency ensures a seamless and natural experience for the user.
- YUY2 4:4:4 1080P With 60FPS: YUY2 uses YUV color space, which separates brightness (luma) and color information (chroma). YUY2 is an uncompressed format. It's ideal for capturing and preserving high-quality video data from sources like cameras or other devices.
- The 3.5mm audio jack on the capture card allow you directly connect analog audio sources using a standard 3.5mm connector. It's helpful to capture audio from devices like microphones, headphones, line-level sources, or musical instruments without additional converters or interfaces.
Unleash the Power of Seamless Capture and Streaming: With superior video quality, hassle-free operation, and broad compatibility, it's the ideal tool for elevating your content creation, broadcasting, and gaming experiences.
Q1: Is it necessary to download professional software such as OBS/Vmix/Potplayer for video capture and recording?
A: MacOS system users can use QuickTime Player for video recording/capture. Windows system users can use the built-in screen recording function on their laptops. Software such as OBS/Vmix/Potplayer can help you achieve better video recording effects.
Q2: How to solve the problem of being able to capture images but unable to capture sound/audio?
A: 1. Please open the laptop/PC Settings, turn on privacy, turn on the microphone privacy permission, allow the application to access your microphone, and then restart the computer.
2. If you are using OBS software for capture, you need to select “advanced audio settings” on the audio input side of OBS software and select “listening” only on the sound side.
3. If your video input source is a laptop/PC, please check the sound settings in the laptop/PC system Settings at the input end and check whether the sound output is a capture card device.
4. If your video input source is a PC or laptop, suggest opening the computer's OBS software for input.
（1）Click “+”
（2）Select “Audio Input Capture” → Click “OK”
（3）Device: Select “ The PC Microphone”→ Click “OK”
（4）Select Audio Mixer and Click “Settings Logo”
（5）Audio Input Capture: Select “Monitor and Output”→ Click “Close”
5. If your video input source is the camera, please confirm whether the HDMI interface of the camera supports audio output.
Q3: Why cannot it be achieved 4K@30Hz Pass-through(Loop-out) Parameter?
A: Firstly, ensure that both the input source and output device support 4K parameters. Secondly, connect HDMI IN port and HDMI OUT port, ensure HDMI OUT device achieves 4K video quality. Thirdly, connect to the Type-C interface for video capture.
Q4: How to solve the problem of whistling/sharp sound when the capture card is connected to the PC?
A: Check the OBS software settings of the input PC and the PC for capture. Open "Advanced audio properties" and change the "microphone/Aux" section to "Monitor Off".
