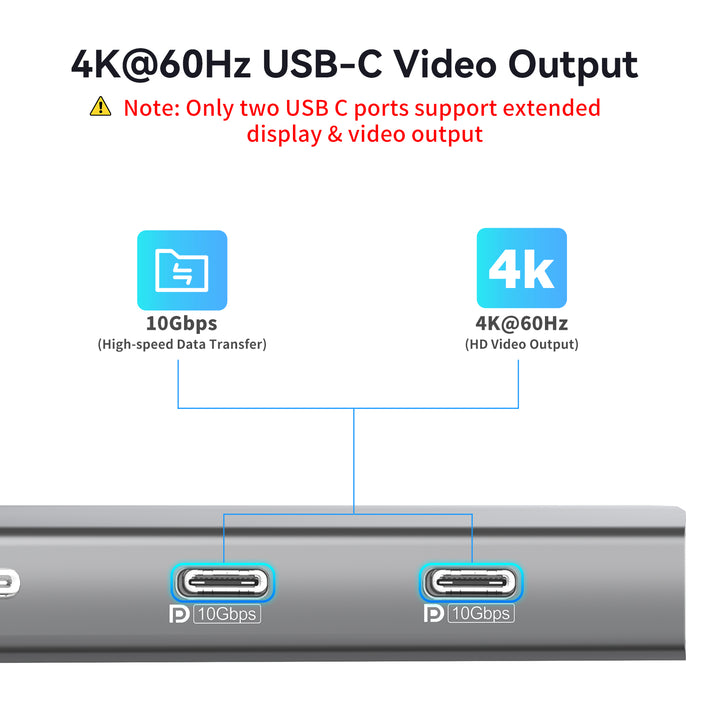

Q: What functions does the USB-C Displayport have?
A: (1) A monitor that can be connected to the USB-C Dislayport. Maximum support 4K@60Hz.
Q: Is the USB-C displayport interface a fully functional interface? Does it support charging function?
A: No, this is not a full featured USB-C interface. This interface only supports USB-C display and 10Gbps data transmission, and does not support charging. If you want to charge your computer, you can connect it to the PD interface to charge it.

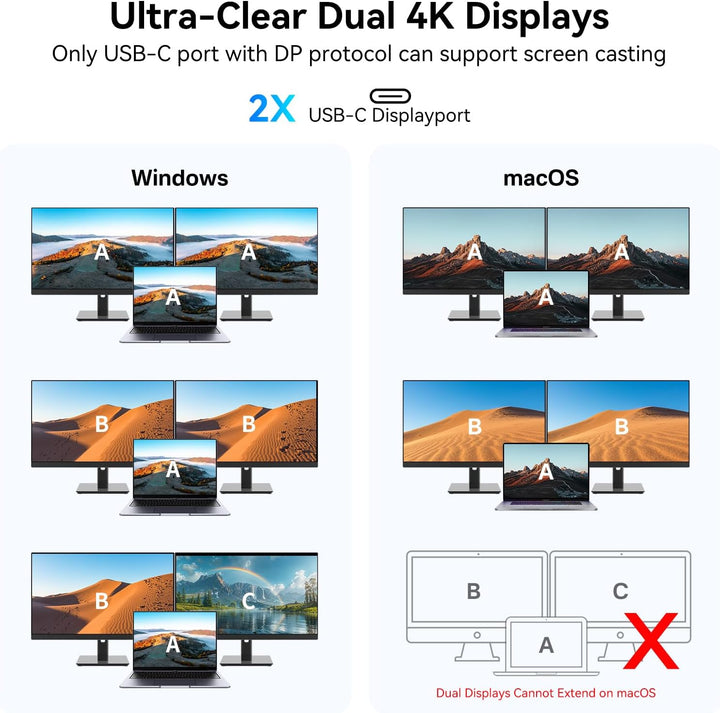

Q: Can the two USB-C displayport interfaces be used at the same time?
A: This usb c adapter is equipped with two 4K@60Hz usb-c displayports to meet your need for extended dual monitors. (The laptop usb c port must be USB 4 or thunderbolt 4, and the monitors must support USB C Alt mode). Windows system support MST and SST (Mirror mode A-A-A and Extend mode A-A-B/A-B-C). MacOS system support Mirror mode: A-A-A and Extend mode A-B-B. (A/B/C refers to the display number).

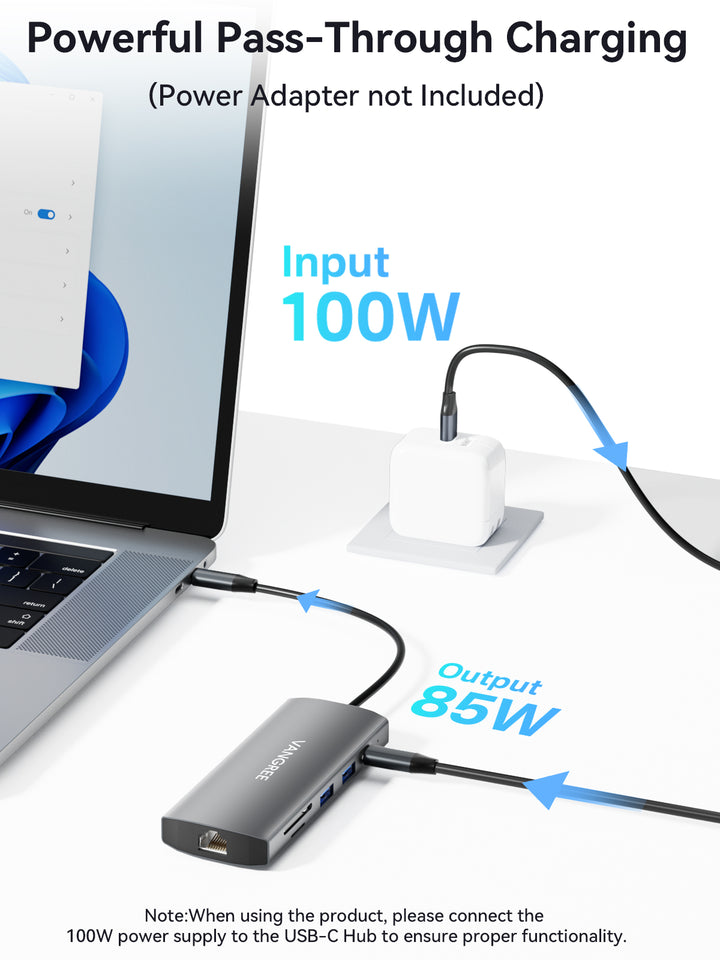

Q: Why does the laptop show a reminder of no charge or slow charge after connecting the PD interface?
A: Since the product will have power consumption during the using and the maximum output of the laptop port c is limited, the load of the hub is relatively large after connecting many ports. In order to avoid the insufficient power allocated to the hub due to the laptop protection settings, it is recommended to connect the 100W power supply.
When using the product, please make sure to connect the power supply to the USB-C hub to ensure proper functionality.

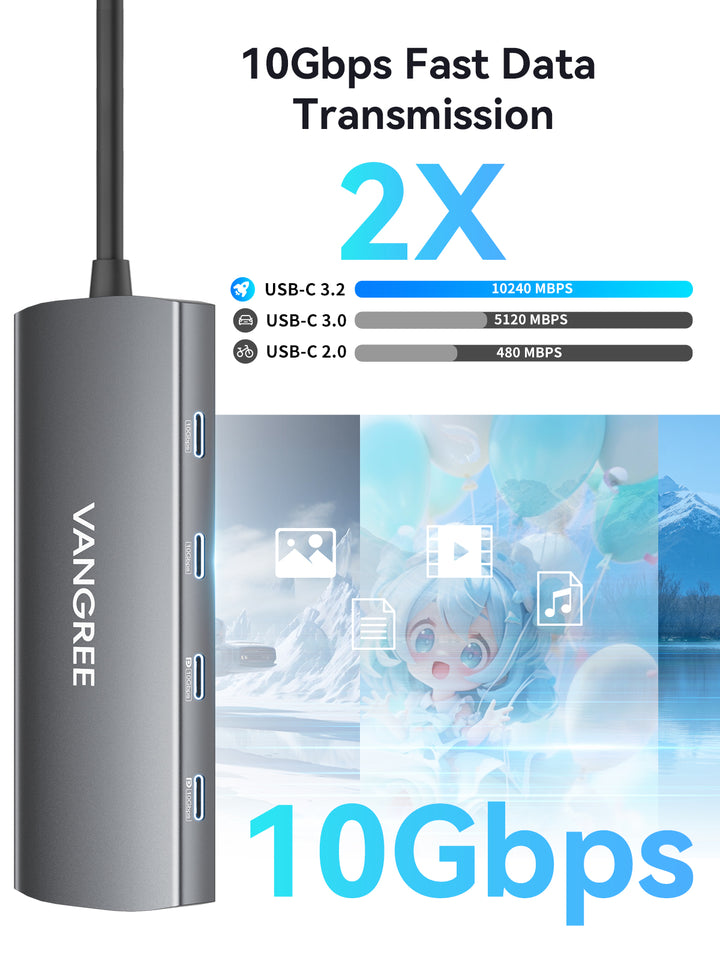

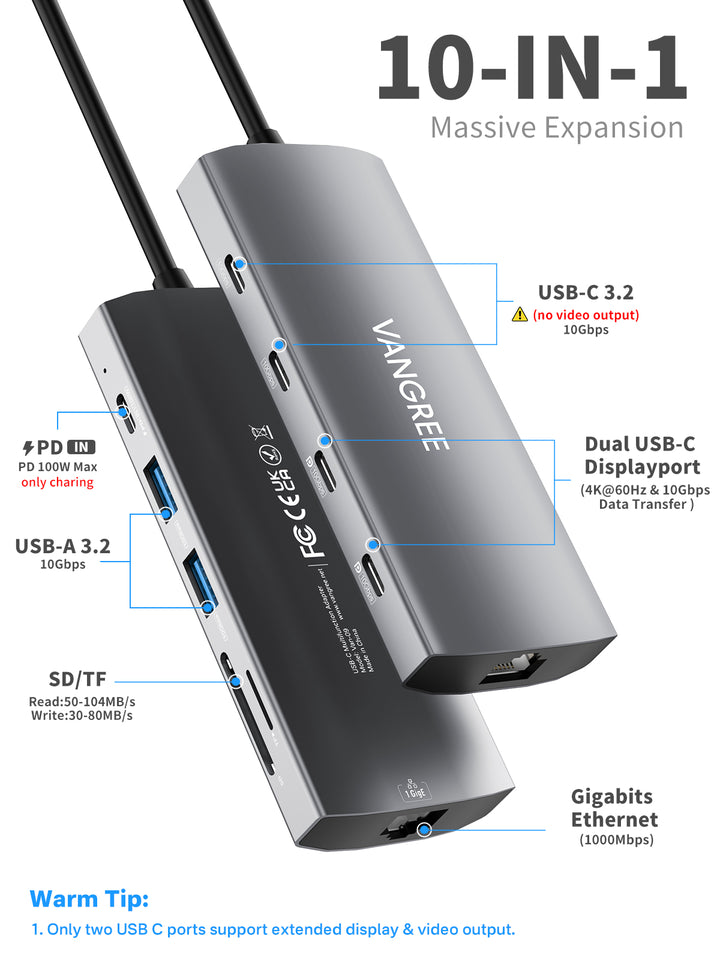

Q: Can each of the 2 USB-C 3.2 Gen 2 ports reach a data transmission speed of 10Gbps?
A: These 2 interfaces will share a total transmission bandwidth of 10Gbps when working together.
Note: The 2 USB-C 10Gbps data ports only support data transmission, not supports extend monitor, charging and video output.
Q: Is this product compatible with Thunderbolt 3/ Thunderbolt 4?
A: Yes, This product compatible with Thunderbolt 3/4 and USB4 ports.
