VANGREE 9-in-1 USB C Monitor Docking Station (Van-06)

$79.99 $59.99

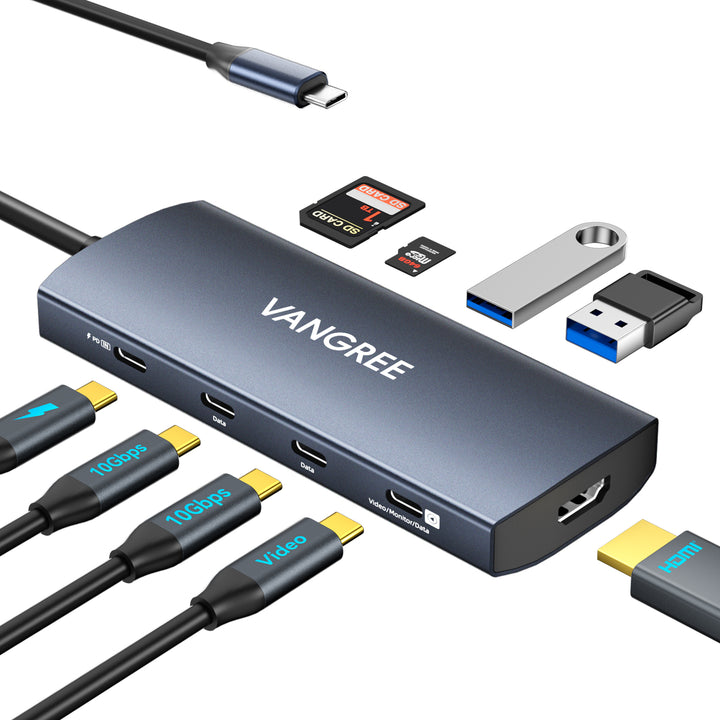

  • 9-in-1 USB C Video Output Hub: This USB C Hub expands one type-c port to 2*USB-C 3.2 10Gbps ports, 2*USB-A 3.2 10Gbps ports, USB-C display port (4K@60Hz & 10Gbps data transfer), 100W power delivery port, 4K@60Hz HDMI port, SD/TF slot.
  • USB-C Video Output: Only one USB-C display port supports 4K@60Hz display and 10Gbps data transfer, offering seamless extended monitor functionality and high-speed video transmission without needing HDMI interfaces. Note: Video output only applies to laptops with fully functional USB-C ports, Thunderbolt 3/4, and USB4 ports.

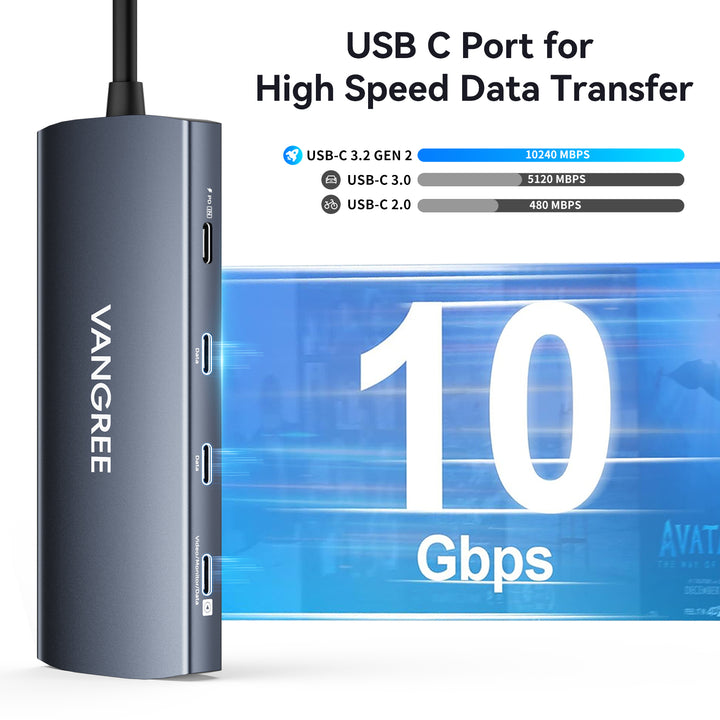

  • 10Gbps USB-C & USB-A Data Transfer: This USB-C Hub can synchronize data through 3 USB-C & 2 USB-A 3.2 ports with 10Gbps data bandwidth, which can transfer and backup data for your external devices more efficiently. Compatible with USB Type-C devices such as laptops, SSDs, mobile phones, and tablets.
  • 4K@60Hz HDMI with DP 1.4 Alt Mode: The 60Hz refresh rate ensures smooth playback of videos and animations, making it easier to present without lag or stutter. DisplayPort 1.4 alt mode supports HDR and Adaptive-Sync technologies like FreeSync and G-Sync, providing a better gaming experience.

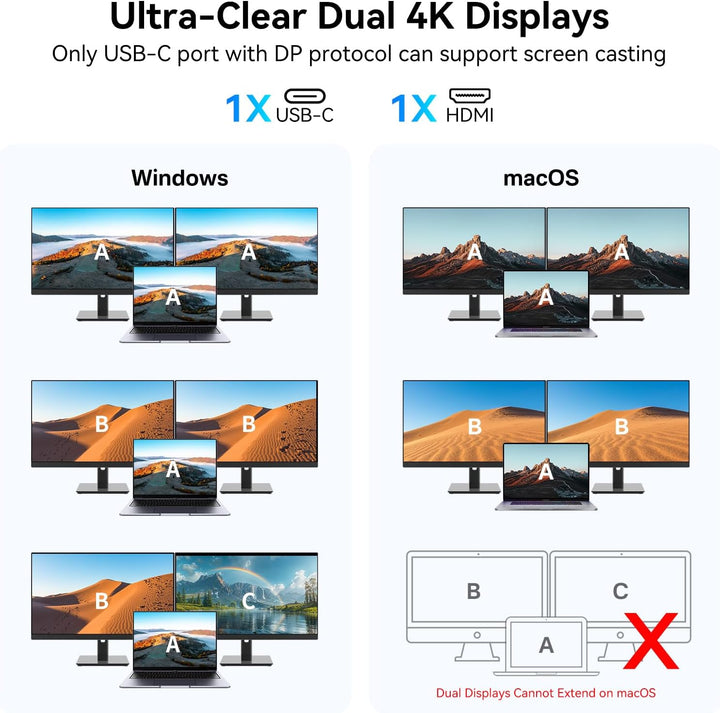

  • Dual Monitor Adapter: This USB C Docking Station is equipped with 4K@60Hz USB-C port & 4K@60Hz HDMI port to meet your need for extended dual monitors. (Note: The laptop USB C port must be USB4 or Thunderbolt 4, and the monitors must support USB C Alt mode). Windows system supports MST and SST (Mirror mode A-A-A and Extend mode A-B-C/ A-A-B/ A-B-B). MacOS supports Mirror mode: A-A-A and Extend mode: A-B-B. (A/B/C refers to the display number).

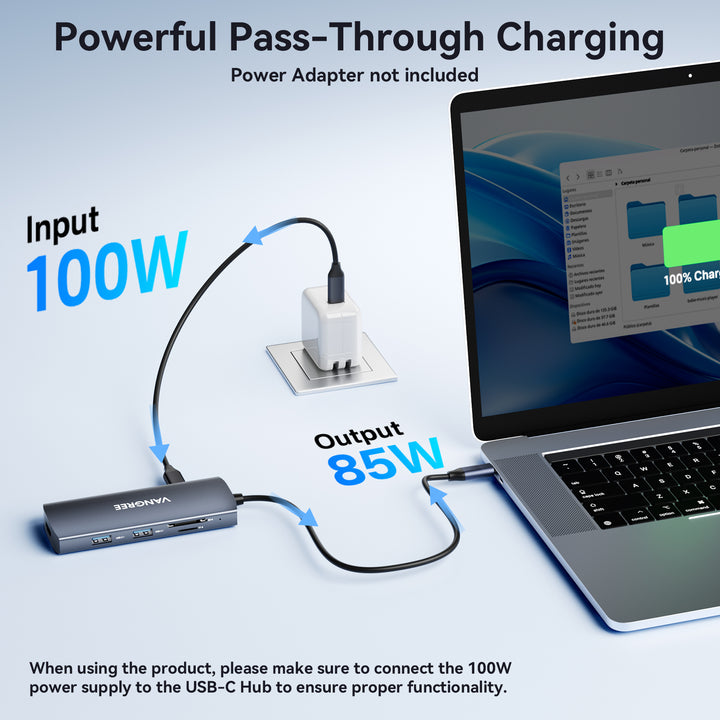

  • 100W Pass-Through Charging: Supports up to 85W pass-through charging so you can power up your laptop while you use the hub. 15W for other interface operations. Note: Pass-through charging requires a charger (not included).

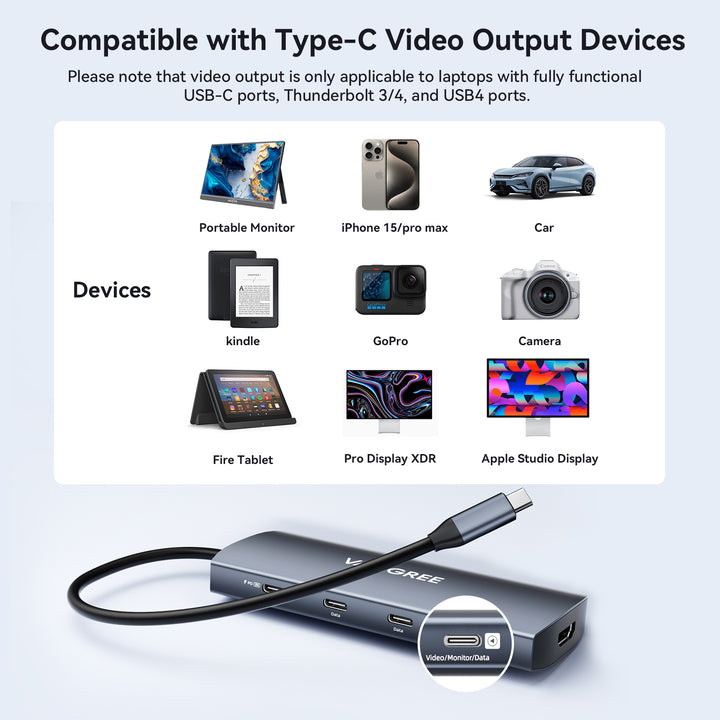

  • Wide Compatibility: The USB-C hub with a USB-C display function supports video output and is compatible with portable monitors, USB-C monitors, Thunderbolt monitors, iMac, Apple Studio Display, Apple Pro Display XDR, GoPro, Cameras, AR smart glasses and more. It greatly satisfies the projection function of portable displays and the worker's demand for flexible working space.
Add to Wishlist
Description

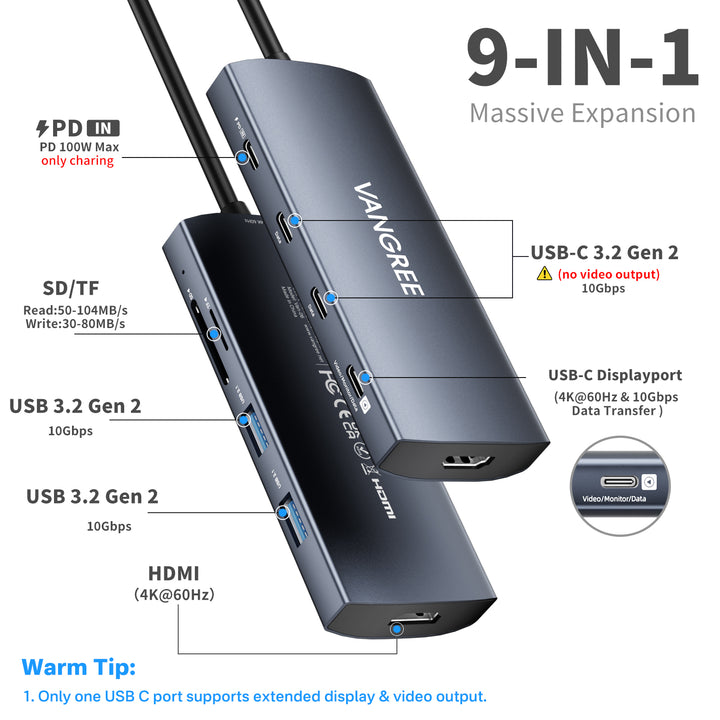

Get 2×USB-C 3.2 data ports(10Gbps), 2×USB-A 3.2 data ports(10Gbps), 1×USB-C Displayport(4K@60Hz &10Gbps Data Transfer) port, 1×4K@60Hz UHD HDMI port, 1×100W Power Delivery, 1× SD/TF slots. Warm Tip: Only one USB C port supports display & video output.

Reviews
User Guide

Van-06 User Guide

FAQ

Q: What functions does the USB-C monitor interface have?
A: (1) A monitor that can be connected to a USB-C interface. Maximum support 4K@60Hz.
(2)It can share 10Gbps data transmission speed with the other two USB-C data interfaces.
(3)Video transmission can be achieved through this interface, which is compatible with portable monitor.

Q: Is the USB-C monitor interface a fully functional interface? Does it support charging function?
A: No, this is not a full featured USB-C interface. This interface only supports USB-C monitor and 10Gbps data transmission, and does not support charging. If you want to charge your computer, you can connect it to the PD interface to charge it.

Q: Can the USB-C monitor interface and 4K@60Hz HDMI interface be used at the same time?
A: This usb c adapter is equipped with 4K@60Hz usb-c port&4K@60Hz HDMI port to meet your need for extended dual monitors. (The laptop usb c port must be USB 4 or thunderbolt 4, and the monitors must support USB C Alt mode). Windows system support MST and SST (Mirror mode A-A-A and Extend mode A-A-B/A-B-C/A-B-B). MacOS system support Mirror mode: A-A-A and Extend mode A-B-B. (A/B/C refers to the display number).

Q: Why does the laptop show a reminder of no charge or slow charge after connecting the PD interface?
A: Since the product will have power consumption during the using and the maximum output of the laptop port c is limited, the load of the hub is relatively large after connecting many ports. In order to avoid the insufficient power allocated to the hub due to the laptop protection settings, it is recommended to connect the 100W power supply.
When using the product, please make sure to connect the power supply to the USB-C hub to ensure proper functionlity.

Q: Can each of the 3 USB-C 3.2 Gen 2 ports reach a data transmission speed of 10Gbps?
A: These 3 interfaces will share a total transmission bandwidth of 10Gbps when working together.
Note: The 2 USB-C 10Gbps data ports only support data transmission, not supports extend monitor, charging and video output.

Q: Is this product compatible with Thunderbolt 3/ Thunderbolt 4?
A: Yes, This product compatible with Thunderbolt 3/4 and USB4 ports.
